YE-Z2S Automatic Pipe Tube Chamfering Machine

YE-Z2S automatic double end chamfering machine is suitable for copper tube, aluminum tube. It can be chamfered inside, outside angle and end face.

This machine provides semi-automatic loading, feeding, and chamfering process. Its diameter ranges from 40 mm to 280 mm. It is a pipe processing method.

Chat Online On


Equipped with a PLC control system, YE-Z2S automatic double head chamfering machine is convenient to operate, simple to maintain, fast feeding of the cylinder, synchronous clamping, double head chamfer feeding at the same time, feed speed can be adjusted according to need.

  • Manual discharging control feeding.
  • The center point is easy to adjust, and the length and size are adjusted by rack and pinion, which is accurate and stable.
  • The cutter head adopts taper type, which is easy to grind.

Technical Parameters

project Technical parameters
The power supply voltage 380v 50Hz
The external air pressure 0.6-0.8MPa
The workpiece length 40-280mm
Machining diameter pipe tube ∅5-∅30,bar tube ∅5-∅30
Processing speed Processing times 30 to 40 times per minute
The length of tolerance ±0.05mm
The motor power 0.75KW/1.1KW
Spindle speed 1400r/min.2800r/min
Feeding way Hands up/automatic bin
Processing range Suitable for all kinds of metal pipe. Inside. Outside. Two head chamfering flat bar
Machine size/weight 1220mm*800mm*1430mm/400kg

Manufactures Description

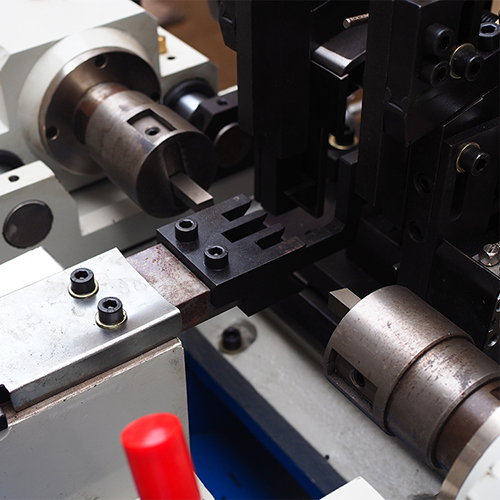

automatic chamfering machine


An automatic double head chamfering machine describes the finishing process of machined parts. Chamfering means to make bevels, grooves, or furrows.

Deburring is to remove any rough ridges, edges or areas from a part after molding. The conversion time to another diameter or length is relatively short.


This is suitable for copper tube, aluminum tube double-ends chamfering flat bar.

The chamfering unit is equipped with a variety of cutting plates, which can chamfer inside and outside the pipe and make precise flat edges.

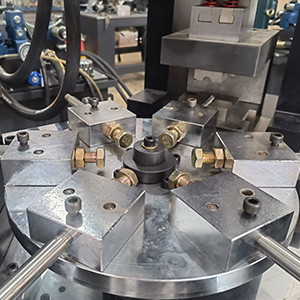

automatic double head chamfering machine
