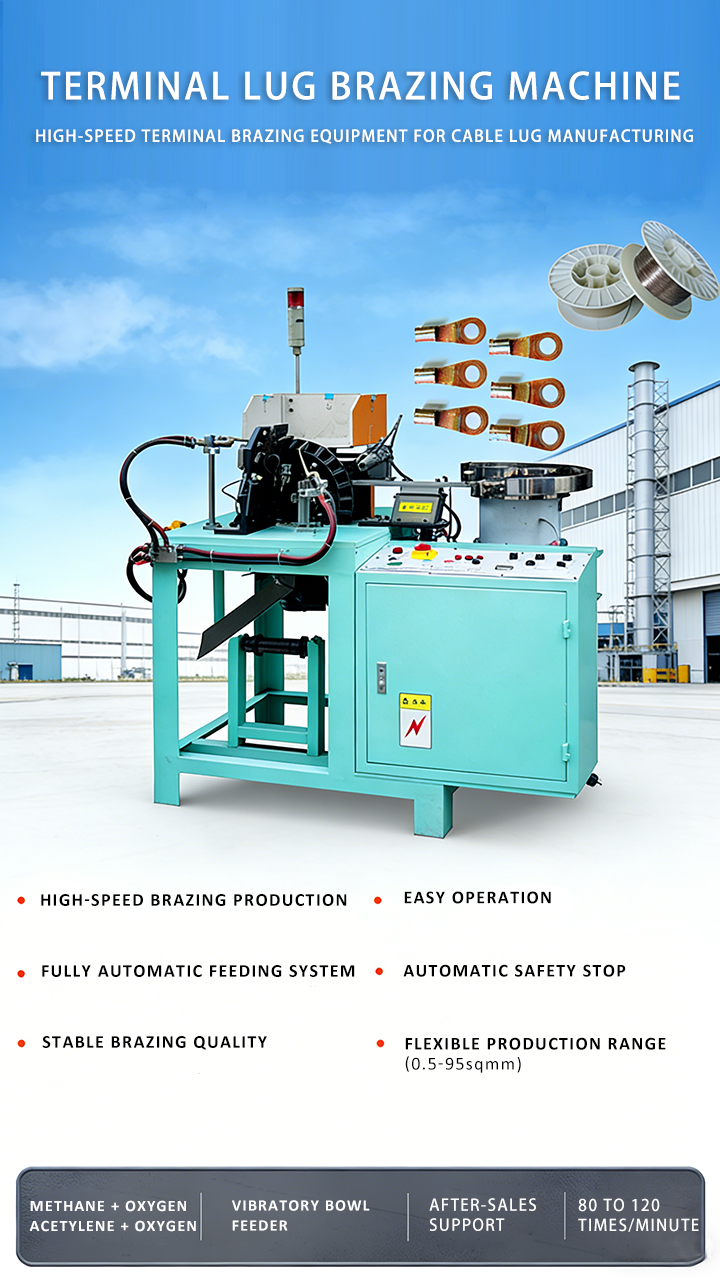

Automatic Terminal Lugs Brazing Machine

Brazing machines can use a variety of heat sources, such as torch, flame, acetylene, gas/air, induction, resistance, infrared, oven, and furnace. Our automatic terminal lug brazing machine is a machine that uses methane & oxygen or acetylene & oxygen to power a flame.

Chat Online On

Overview

Automatic terminal lug brazing machine uses vibration plate vibration to align transport terminals.

Most use methane and oxygen combustion to provide flame to dissolve the brazing wire filling terminal joints directly.

A rate of 80 to 120 times per minute is processing speed. Using a wheel clamp terminal, the highest efficiency to complete welding.

Technical Parameters

project Technical Parameters
models YE-H1 YE-H2 YE-H3
produce range 16-10 A.W.G 7-5 A.W.G 4-1 A.W.G
The power supply voltage 220 v 50 Hz
The external air pressure 0.6-0.8 MPa
Processing speed Processing times 80 to 120 times per minute Processing times 60 to 80 times per minute Processing times 50 to 60 times per minute
The motor power 200W
Machine size/weight 1400mm*700mm*1200mm+500*500*400mm/300kg

Manufactures Description

automatic brazing machine



  • Reliable alloy feeding ensures an excellent brazing effect. Let you free from the crack issue.
  • Multi-wire gauge production in a machine multi-purpose manufacturer.
  • Quick conversion of different wire gauges.
  • Friendly operation instructions, one operator can run multiple machine manufacturers.
  • When terminals or alloys are exhausted, the machine manufacturers will stop automatically.



The automatic terminal lug brazing machine adopts filler metals in solid forms, such as brazing wire and brazing rod.

Brazing machines’ automatic metal application, reduces labor costs, lower reject rates, and improves product quality, without“human error”.

braze terminal
